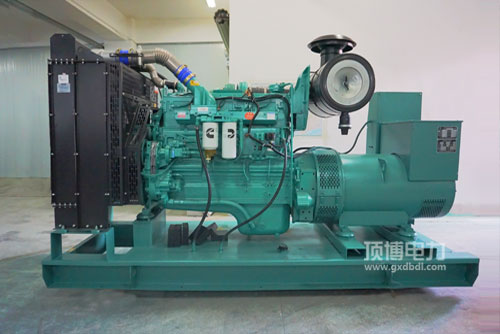

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用发起机柴油生活性好: 先进性的柴油管控设计方案，独具的STC、ESTC 级别划分管控设计方案，特殊的设计方案的活塞环最上层助燃室，直流电压喷射柴油，有力吸雾，助燃有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用热车机瞬态性能指标不错: 无极限的热车机一体化设定，合作康明斯特色的EFC程序，操控精度等级高，回应精力快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用热车机升工作效率高: 整体化规划紧奏型.形态摆设适度，运作平衡。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷款型 QSNT. QSK19. QSK38. QSK50满足了全国非道路上其三时段及北美洲Tier2. Tier 3排放量规范规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件而犯性好， 启行为执行及养护维修保养便于，制造费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

耗油率面积 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观设计尺寸图 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质量水平 Dry Weight   940kg

224-310KW康明斯风能发电用热车机的特色：密度小， 缩小变高， 防雨百叶窗的空气煮沸，非常易加载，转动车载多媒体电源适配器的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机型号规格	适用工作功率(kW)Prime Power	备用电源电率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
